The PT-EXL-2 Series is a dual color (green or red) exit light featuring 90 minutes of up time during outage, is universally mountable, field adjustable for single or dual face, and complies with UL924.
Features
- Finish: White
- Letter Color: Red/Green
- Housing: ABS
- Wattage: 1W
- Voltage: 120-277V
- Lumens: 200
- Battery Type: 1.2V 900mAh Nickel Cadmium
- EM Run Time: 90 mins
- Charging Time: 24 hrs
- 2-faced
- Field adjustable for single or dual face in red or green color inserts
- The universal J-Box mounting pattern supports quick installation time. Mount directly on a wall or to a ceiling.

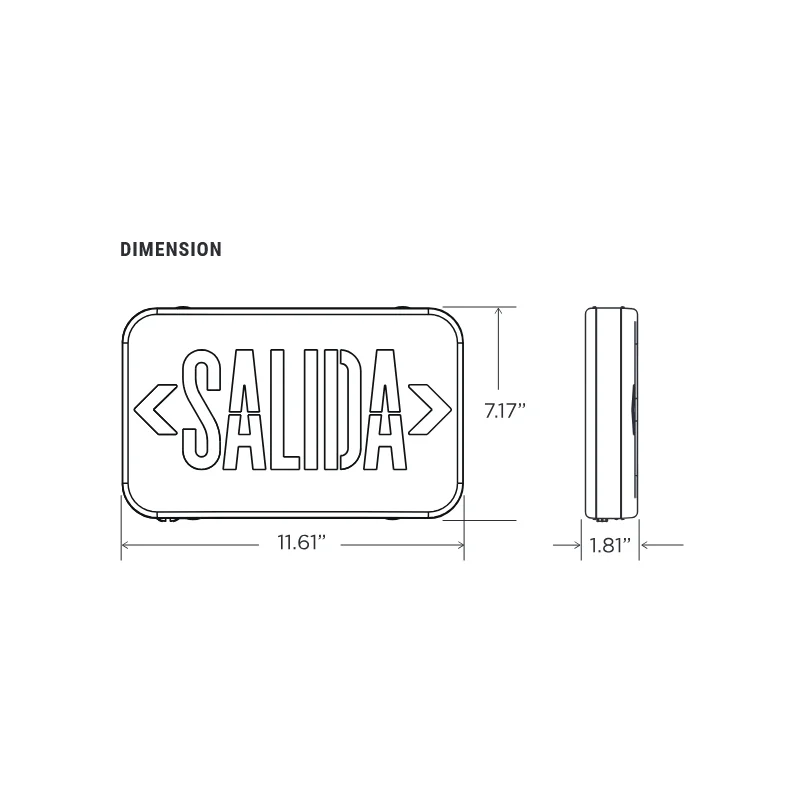

Dimensions
- Length: 11.61"
- Width: 7.17"
- Height: 1.81"
Warranty
- 5-year limited warranty on electrical parts and housing
- 3-year limited warranty on battery
